ZHEDXB-600 Pump mud system For 70ton HDD
ZHEDXB-600 wholesale mud pump mainly works with the drilling rig around 70ton.
| Model : | ZHEDXB-600 |
| Type : | Hydraulic Mud Pump |
| Stroke : | 110 |
| Cylinder Diameter : | 95 |
| Flow : | 600-300 L/min |
| Pressure : | 3.5-7 Mpa |
| Shipping Port : | Shanghai Port, China |
| Warranty : | 12 Months |
Get a Quote
*We respect your confidentiality and all information are protected.
Product Details

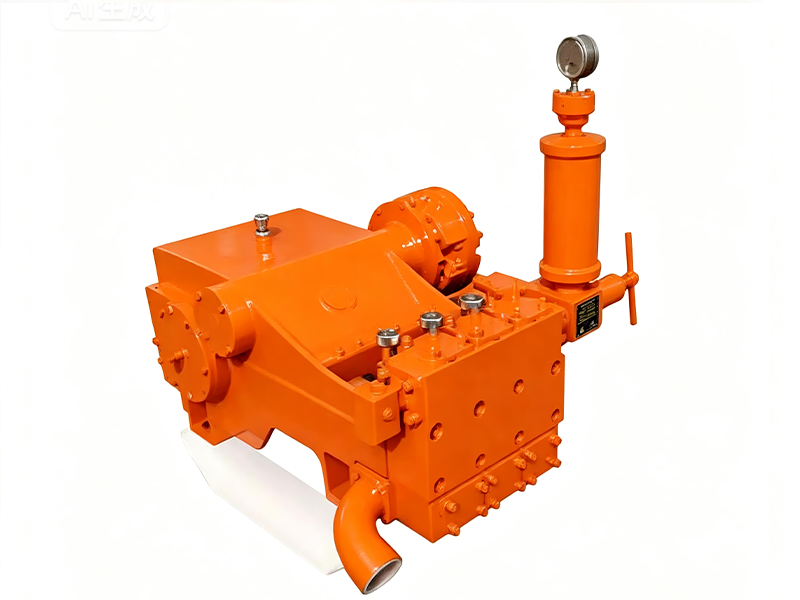

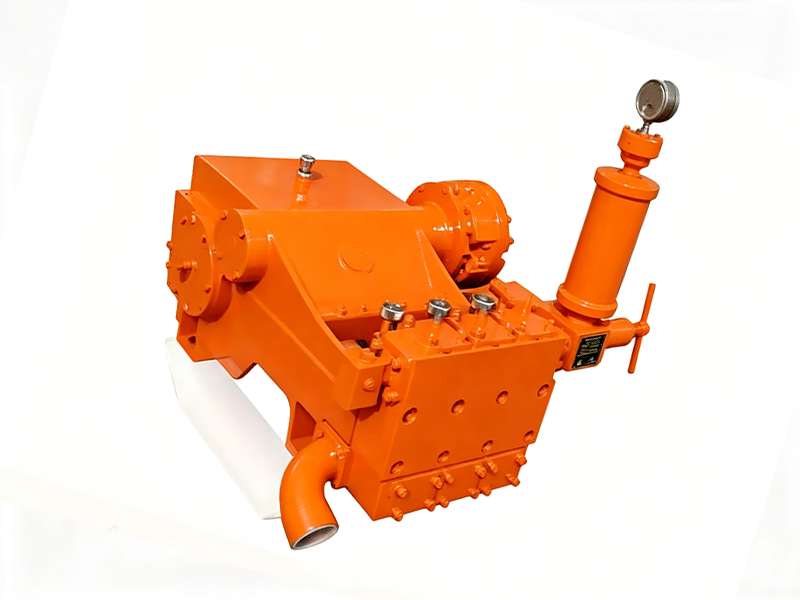

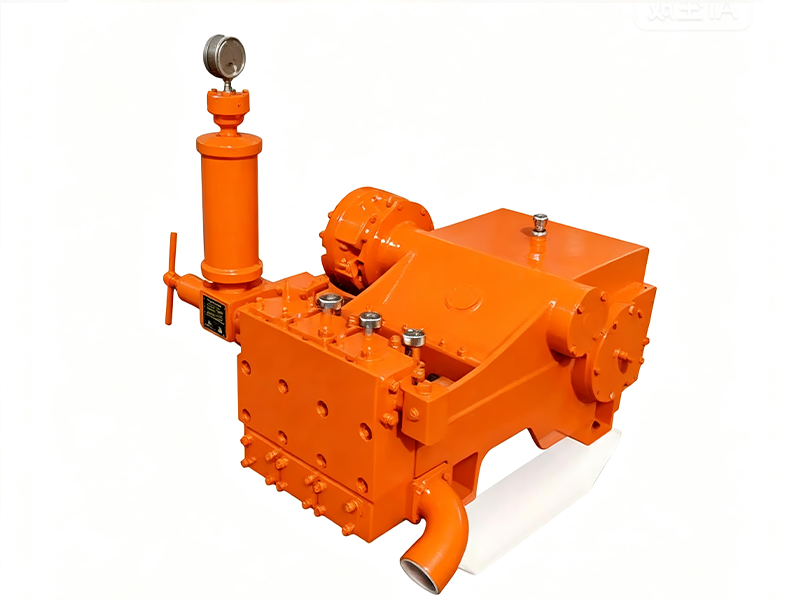

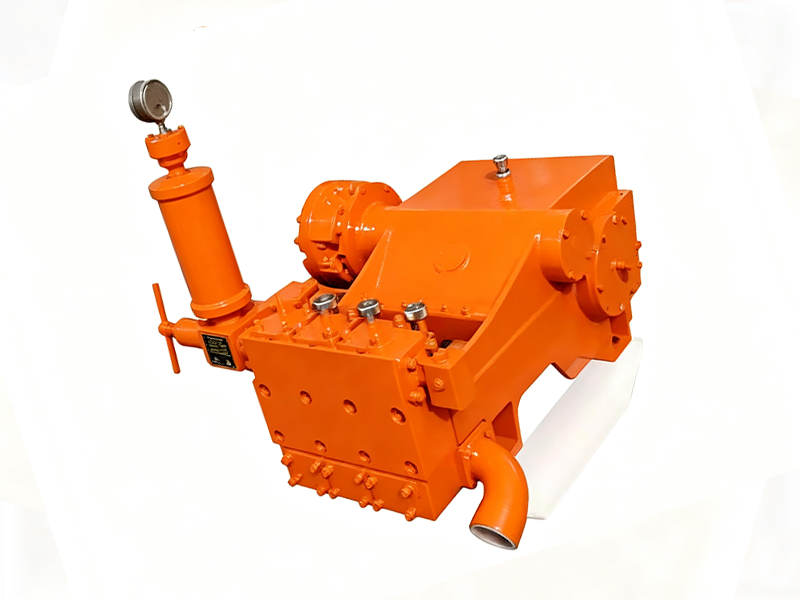

ZHEDXB-600 mud pump unit is a kind of multi-purpose horizontal triplex reciprocating single-acting plunger pump, adopting double displacement hydraulic motor to drive.
It mainly works with the trenchless drilling rig about 70T. It can also be used for other purposes, such as grouting, mine drainage and long-distance water delivery.
This kind of mud pump has two flows and pressures, by remotely adjusting hydraulic motor flow.
Technical Parameters and Specifications:
| Type | Horizontal Triplex Reciprocating Single Acting Plunger Mud Pump |
| Stroke (mm) | 110 |
| Cyclinder Diameter (mm) | 95 |
| Flow ( L/min) | 600-300 |
| Pressure (Mpa) | 3.5 – 7 |
| Input Speed (r/min) | 900-451 |
| Input Power (KW) | 45 |
| Dimensions (mm) | 1353*940*582 |
| Weight (kg) | 710 |
| Hydraulic Motor Model | SA12-350-170 |
| Hydraulic Motor Pressure (Mpa) | 20 |
| Maximum Motor Flow (L/min) | 175 |
Advantages:
1 – Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.
- Production Team：guaranting the production time and the quality, never late for shipment.
- Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
2 – Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
3- Advanced and professional testing and inspection equipment.
