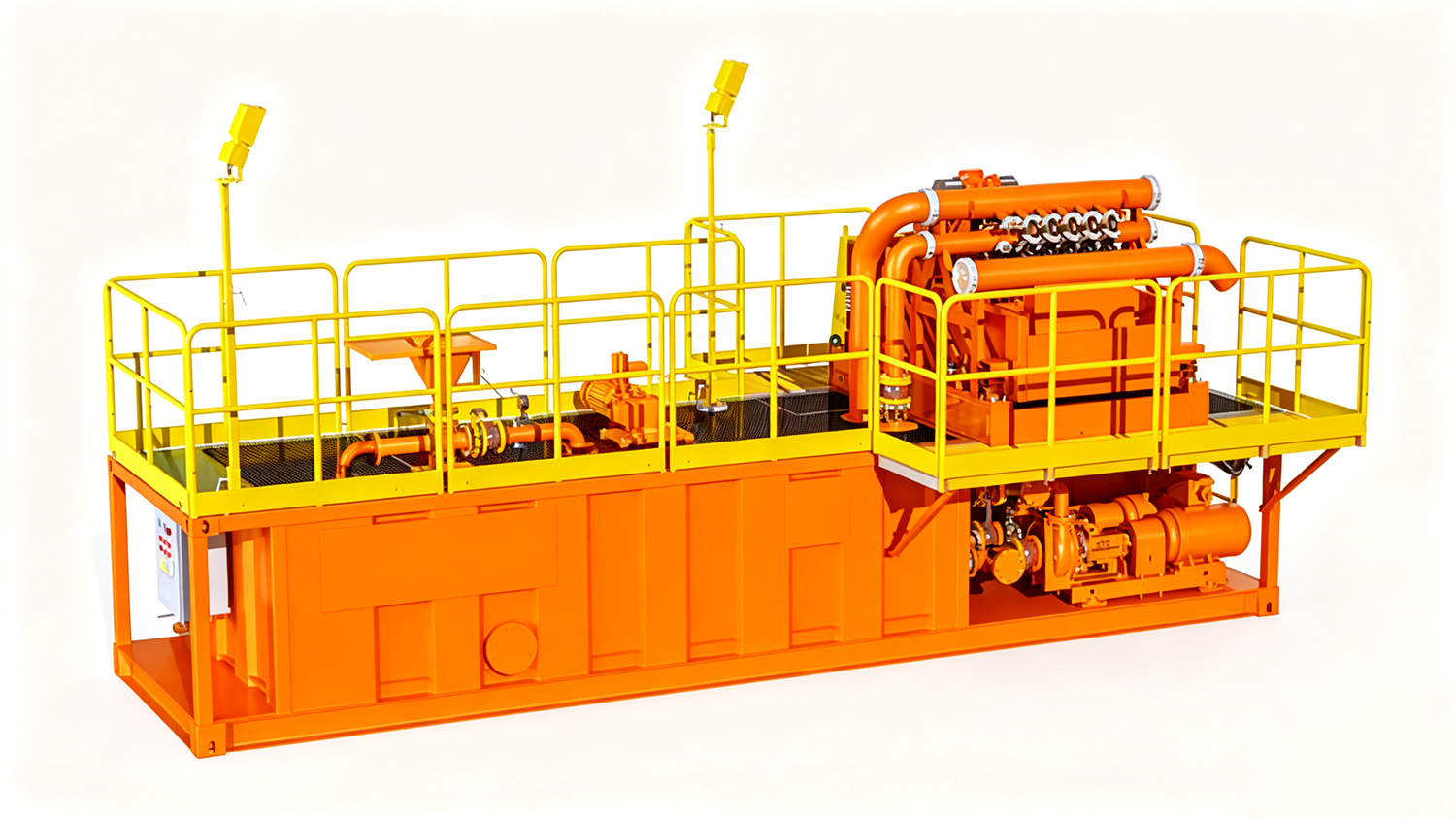

HDD Mud Recycling System
ZHE Solids Control is a leading manufacturer of Mud Recycling Systems for Horizontal Directional Drilling (HDD) drilling rigs.
| Function | Mud Recycling, Mud Mixing, and Mud Storage | |||
| Model | ZHEMS-200B | ZHEMS-400B | ZHEMS-600B | ZHEMS-800B |
| Capacity | 200GPM | 400GPM | 600GPM | 800GPM |
| 45m³/h | 90m³/h | 136m³/h | 180m³/h | |
| Separation | Shaker and Desilter, 2 Stage | 3 Stage | ||
| Cut Point | 20 Microns | |||
| Power | 24.4KW | 44.8KW | 70KW | 147KW |
| Volume | 5m³ | 8.5m³ | 15m³ | 19.5m³ |
Get a Quote
*We respect your confidentiality and all information are protected.
Product Details
Complete line of Mud Systems: We offer a range of self-contained mud recycling systems with various capacities to suit different requirements. ZHEMS-200GPM / ZHEMS-350GPM / ZHEMS-500 GPM / ZHEMS-1000GPM / ZHE1500 GPM.
Cost-effective Equipment Integration: Our drilling mud equipment is designed to provide a complete solution from a single source, manufactured at ZHE Solids Control Factory.
Fast-Moving Compact System: Our systems are designed with a small footprint and feature fast connections for removable parts. Most parts are fixed during transportation to comply with transport regulations.
Assured Customer Service: Our experienced engineers can provide installation and training support for both customers and their engineers.
Mud Tanks Flexible Options: We offer skid-mounted, trailer-mounted, or hydraulic jack-up mud recycling tanks to provide flexibility according to your preferences.
Technical Parameters and Specifications:
| Type | Self-Contained Mud Recycling System | |||
|---|---|---|---|---|
| Function | Mud Recycling, Mud Mixing, and Mud Storage | |||
| Model | ZHEMS-200B | ZHEMS-400B | ZHEMS-600B | ZHEMS-800B |
| Capacity | 200GPM | 400GPM | 600GPM | 800GPM |
| 45m³/h | 90m³/h | 136m³/h | 180m³/h | |
| Separation | Shaker and Desilter, 2 Stage | 3 Stage | ||
| Cut Point | 20 Microns | |||
| Power | 24.4KW | 44.8KW | 70KW | 147KW |
| Volume | 5m³ | 8.5m³ | 15m³ | 19.5m³ |
| Please note the above specifications and parameters are for reference only | ||||
Advantages:
1.Mud Recycling Tank
The mud recycling tank is equipped with various attachments, including walkways, handrails, and mud clean gates, to facilitate easy access and efficient operation.
2.Shale Shaker:
The shale shaker serves as the primary stage of mud recycling, effectively removing solids larger than 100 microns from the drilling mud.
3.Desander:
As the secondary phase of mud cleaning, the desander is responsible for separating solids larger than 50 microns, contributing to enhanced mud quality.
4.Desilter:
The desilter acts as the third phase of mud recycling, specifically designed to separate solids larger than 20 microns, further refining the mud composition.
5.Decanter Centrifuges:
In the fourth phase of mud recycling, decanter centrifuges play a crucial role in separating solids within the range of 2 to 5 microns, ensuring the highest level of purification.
6.Mud Agitators, Mud Guns, Mud Mixing Pumps, and Drilling Mud Transfer Pumps:
These essential components are integrated into the mud recycling unit to facilitate efficient operation, including maintaining proper mud consistency, effective mixing, and seamless transfer of drilling mud.
7.Customized Solutions:
In addition to our standard drilling mud recycling systems, we offer tailored solutions that cater to the specific requirements and applications of drilling contractors, ensuring optimal performance and productivity.
