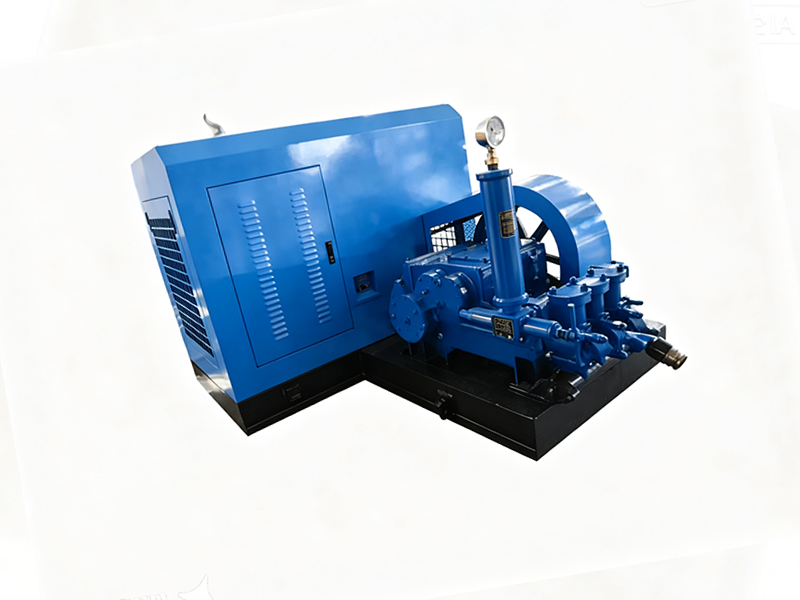

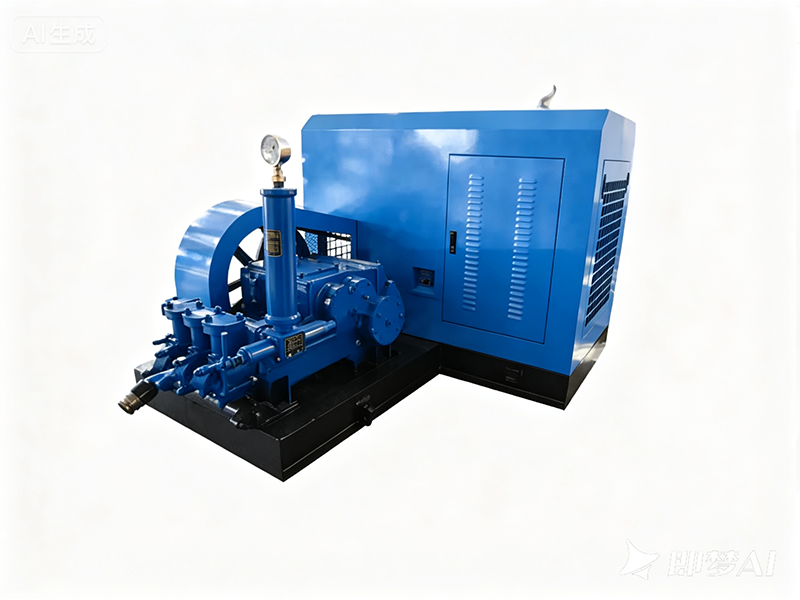

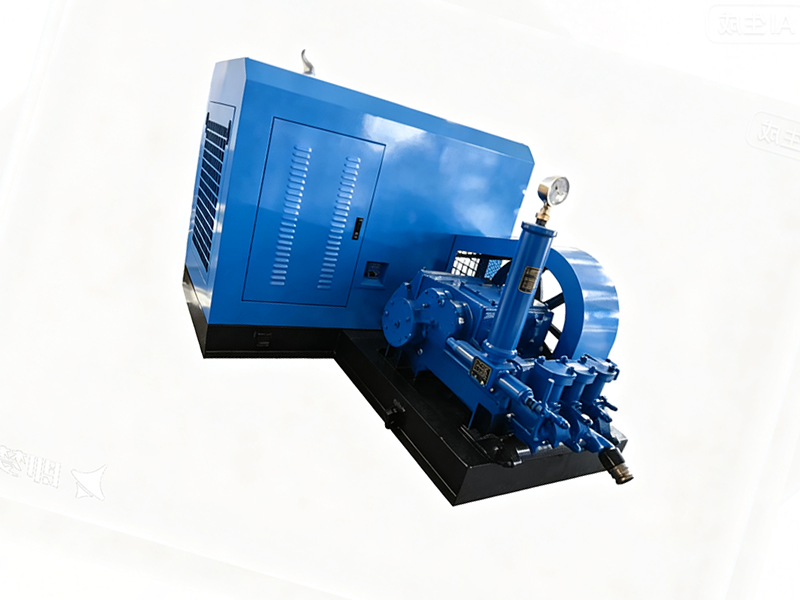

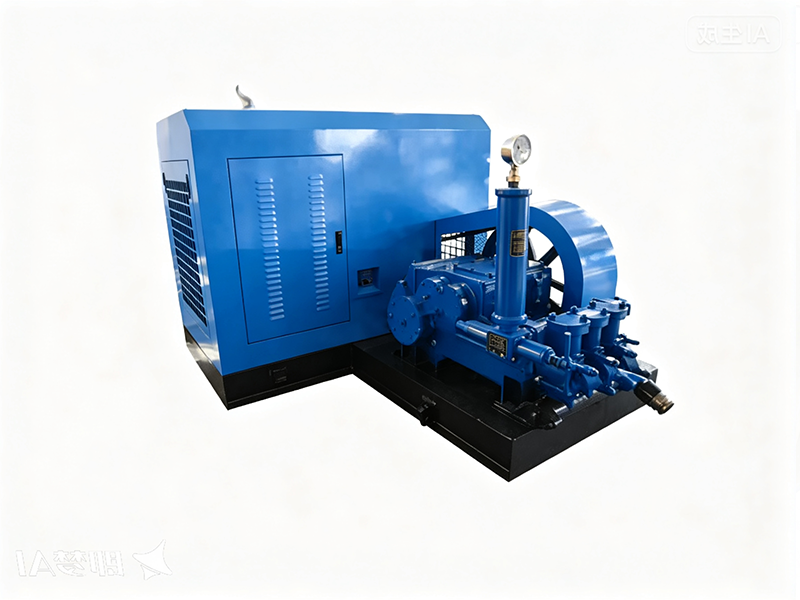

ZHE-600 HDD Drilling Mud Pump
ZHE-600 drilling mud pump mainly used for geological exploration, grouting, mine sewage and long-distance water delivery and other purposes.
| Model : | ZHE-600 |
| Type : | Diesel Engine Mud Pump |
| Stroke : | 110 |
| Cylinder Diameter : | 100 |
| Flow : | 195-600 L/min |
| Pressure : | 3.5-10 Mpa |
| Shipping Port : | Shanghai Port, China |
| Warranty : | 12 Months |
Get a Quote
*We respect your confidentiality and all information are protected.
Product Details
ZHE-600 hdd drilling mud pump is a multi-purpose horizontal three-cylinder reciprocating single-acting piston pump with four-speed gear transmission and four-speed flow.
It can not only adapt to the requirements of a variety of new drilling techniques, but also meet the requirements of hydraulic percussion drilling within a hole depth of 1000m, the matching of screw drilling and turbo drilling within a hole depth of 1500m, and the matching of ordinary core drilling within a hole depth of 2500m.
Technical Parameters and Specifications:
| Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) | 110 |
| Cyclinder Diameter (mm) | 100 |
| Flow (L/min) | 600 415 280 195 |
| Pressure (Mpa) | 3.5 5 7.5 10 |
| Input Speed (r/min) | 550 |
| Dimensions (mm) | 2410*1785*1670 |
| Weight (kg) | 2100 |
| Diesel Model | R4105ZP |
| Diesel Engine Power (KW) | 60 |
| Rated Speed (r/min) | 1450 |
Advantages:
1 – Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.
- Production Team：guaranting the production time and the quality, never late for shipment.
- Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
2 – Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
3- Advanced and professional testing and inspection equipment.
