ZHE-2200 Trenchless Mud Pump For 300ton HDD
ZHE-2200 oilfield mud pump is a horizontal triplex pump.
| Model : | ZHE-2200 |
| Type : | Diesel Engine Mud Pump |
| Stroke : | 200 |
| Cylinder Diameter : | 140 |
| Flow : | 500-2200 L/min |
| Pressure : | 5-20 Mpa |
| Shipping Port : | Shanghai Port, China |
| Warranty : | 12 Months |
Get a Quote
*We respect your confidentiality and all information are protected.
Product Details

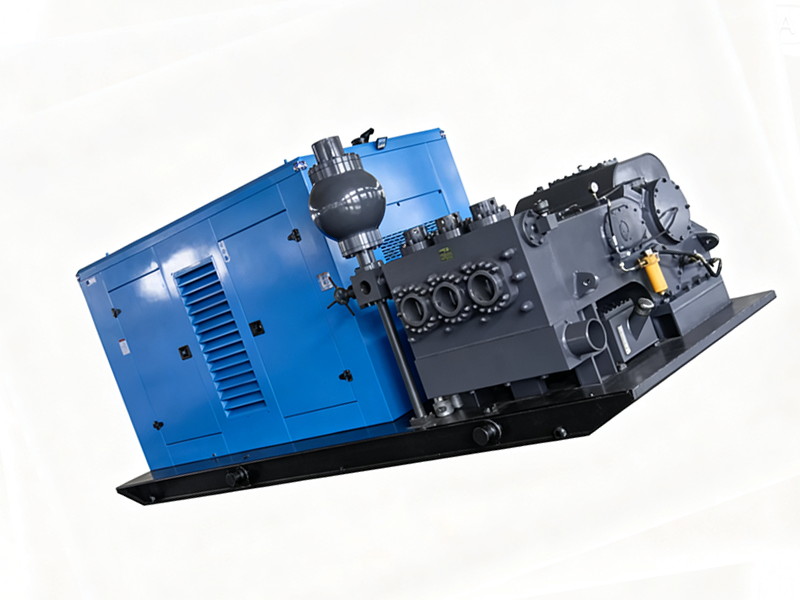

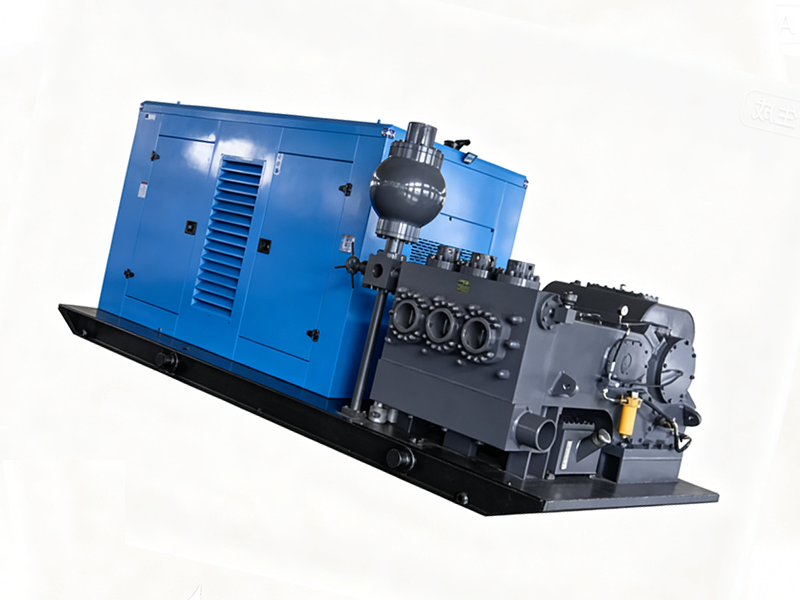

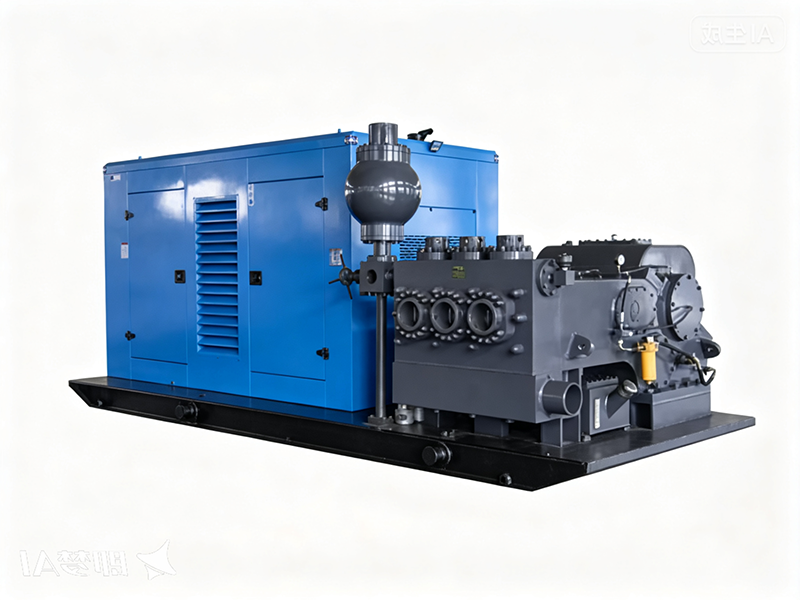

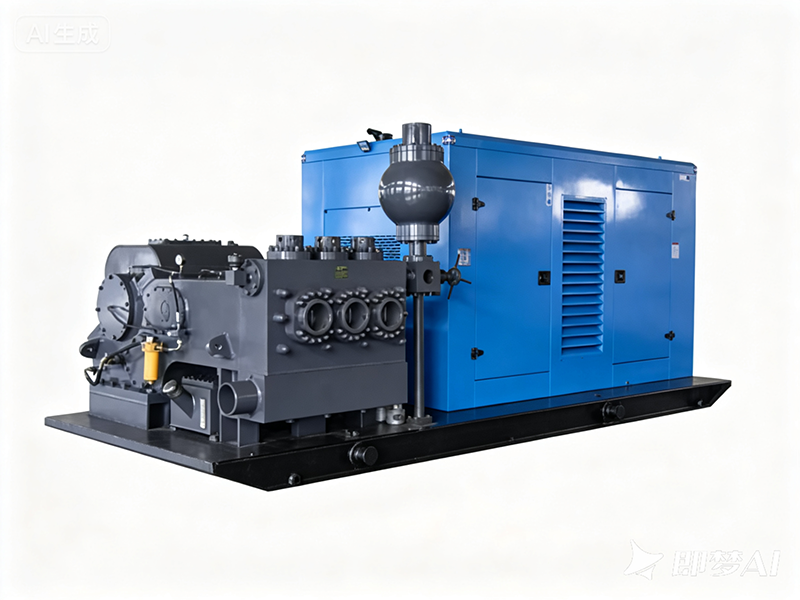

ZHE-2200 horizontal drilling mud pump is a reciprocating single-acting plunger pump, driven by diesel engine, equipped with automatic shift gearbox, wireless remote control. It has six kinds of flow and pressure.
This mud pump can also be used for other purposes, such as grouting, mine drainage and long-distance water delivery.
Features:
1. With Cummins diesel engine；
2. Wireless remote control, improving efficiency；
3. Easy operation, reliable performance；
4. Good disassembly, easy maintenance and relocation.
Technical Parameters and Specifications:
| Type | Horizontal Triplex Reciprocating Single Acting Plunger Mud Pump |
| Stroke (mm) | 200 |
| Cyclinder Diameter (mm) | 140 |
| Flow (L/min) | 2200 1700 1200 900 650 500 |
| Pressure (Mpa) | 5 6.5 9 12 17 20 |
| Input Speed (r/min) | 220 |
| Dimensions (mm) | 5310*2300*2480 |
| Weight (kg) | 12500 |
| Diesel Model | YC6MK420-T30 |
| Diesel Engine Power (KW) | 281 |
| Rated Speed (r/min) | 1800 |
| Type | Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) | 150 |
| Cyclinder Diameter (mm) | 120 |
| Flow (L/min) | 1200 890 660 485 363 |
| Pressure (Mpa) | 4.5 6 8 10 12 |
| Input Speed (r/min) | 100 |
| Dimensions (mm) | 3930*2096*1908 |
| Weight (kg) | 4180 |
| Diesel Model | QSB5.9-C180 |
| Diesel Engine Power (KW) | 132 |
| Rated Speed (r/min) | 1800 |
Advantages:
1 – Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.
- Production Team：guaranting the production time and the quality, never late for shipment.
- Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
2 – Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
3- Advanced and professional testing and inspection equipment.
